テストと計測
テスト・計測の分野では、高い精度、再現性、そして信頼性が求められます。
半導体の検証、センサーの校正、各種規格への適合確認など、さまざまな試験・評価プロセスにおいて、Standex DETECTは高性能なリードスイッチ、センサー、リレーを提供し、正確で信頼性の高い測定・試験システムの実現を支えています。
あらゆる測定プロセスに、高精度と信頼性を。
研究開発からフィールド試験まで、世界の計測技術を支えるスイッチングソリューション
高精度な測定を支える高機能コンポーネント
試験・計測システムは、製品性能の検証、各種規格への適合確認、そして産業の技術革新を支える重要な役割を担っています。
研究開発用の計測機器、診断装置、自動試験装置などのさまざまな用途において、これらのシステムには高い精度、優れた再現性、そして確実な電気的絶縁性能が求められます。
当社の高性能コンポーネントは、これらの要求に応えるよう設計されており、静的・動的のさまざまな試験環境において、高精度なセンシング、信頼性の高いスイッチング、そして優れた信号品質を実現します。
試験・計測システムの安全で信頼性の高い動作を支える主な技術用途:
試験・計測分野向け技術ポートフォリオ:
- リードリレー：ATE・DAQ・各種適合試験において信号品質を支える、超低リーク電流・高絶縁のスイッチング
- リードスイッチ＆センサー：位置検出・近接検知・安全インターロック用途に対応する、気密封止型非接触センシング
- ホールセンサー：動的試験環境において、モーション・電流・位置フィードバックを実現するソリッドステートセンシング
- フォトカプラ：高速・高電圧の試験回路において、ガルバニック絶縁とEMI保護を実現
- カスタムアセンブリ：テストベンチ、シミュレーター、試験・評価装置向けのモジュール型カスタムソリューション
高精度試験を支える高精度センシング
Standex DETECT：試験・計測分野における信頼のエンジニアリングパートナー
Standex DETECTは、単にコンポーネントを供給するだけでなく、試験システム開発における信頼できるパートナーとしてお客様と協力します。
「Innovate | Consult | Engineer | Deliver」のアプローチを通じて、試験・計測機器メーカー（OEM）と連携し、高精度・高信頼性・各種規格への適合を実現する、拡張性の高い高性能ソリューションを共同で開発しています。
Our approach is built on four pillars that guide every engagement:
- Innovate: Generate new ideas and technologies that support miniaturization, high-isolation switching, and integration for next-generation test platforms.
- Consult: Understand client needs and test protocols through open dialogue and technical intimacy, becoming a trusted extension of your engineering and product development teams.
- Engineer: Create effective and tangible solutions through deep technical collaboration and application expertise in ATE, aerospace validation, and instrumentation.
- Deliver: Ensure customer satisfaction with solutions that meet performance, quality, and delivery expectations, supporting precision, repeatability, and uptime in demanding test environments.
Whether you’re designing for high-speed ATE, rugged aerospace validation, or precision instrumentation, we bring the agility, customization, and global support needed to help you succeed.
What Sets Us Apart
- Engineer-to-Engineer Collaboration: We work directly with your technical teams to co-develop solutions that meet your exact test requirements, no black boxes, just transparent, collaborative design.
- Vertically Integrated Manufacturing: From reed switch fabrication to final assembly, we control every step, ensuring quality, traceability, and speed.
- High-Isolation, Low-Leakage Switching: Our reed relays are trusted in the most sensitive signal paths, delivering unmatched performance in ATE and compliance testing.
- Miniaturization & Integration: We specialize in compact, high-density components that fit into space-constrained test systems without sacrificing performance.
- Global Support, Local Agility: With engineering and manufacturing across three continents, we offer fast response times, regional compliance expertise, and supply chain resilience.
- Custom + Standard Solutions: Whether you need off-the-shelf reliability or a fully customized assembly, we deliver both—with precision and speed.
Why Test & Measurement OEMs Choose Us
- Custom Engineering: From discrete relays and sensors to integrated switching assemblies, tailored for high-precision test platforms and instrumentation.
- Agility & Speed: Fast response to evolving test protocols, design iterations, and time-to-market demands in dynamic R&D and production environments.
- Reliability: Components tested for high-voltage isolation, low leakage, thermal stability, and long-term performance in high-cycle test systems.
- Scalability: From early-stage prototypes to high-volume production for global test equipment platforms.
- Innovation: Smart sensing, miniaturization, and high-density integration for next-generation ATE, DAQ, and compliance testing systems.
Certified, Customizable, and Built for High-Accuracy, High-Reliability Environments
Certifications & Compliance:
We meet or exceed globally recognized standards to ensure the safety, precision, and reliability of our reed switches, sensors, and relays in high-performance test and measurement environments:
General Test & Measurement:
ISO 9001:2015 – Quality Management System
ISO 14001:2015 – Environmental Management System
REACH & RoHS – Compliance with hazardous substance and environmental regulations
CE Marking – Conformity with EU safety, health, and environmental protection standards
UL Recognized Components – For use in high-voltage and high-frequency test systems
IP67/IP68 Ratings – Environmental protection for components used in rugged or sealed test environments
Automatic Test Equipment (ATE):
High-Voltage Isolation & Dielectric Strength – Reed relays rated for up to 3000 V isolation and 1000 V switching
RF Performance – Certified RF reed relays with coaxial shielding for 50 Ohm impedance and flat insertion loss up to 13 GHz

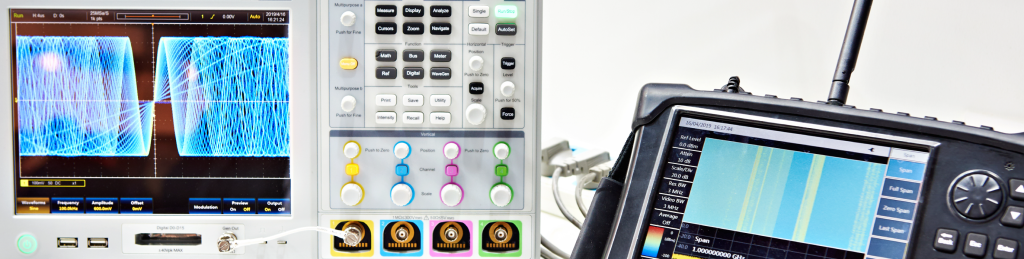

Instrumentation:
Low Thermal Offset & Signal Integrity – Reed relays engineered for minimal thermal voltage and high signal fidelity in precision measurement setups
Electrical Safety & Compliance Testing:
UL & CE Components – Used in systems requiring high-voltage hold-off, fast switching, and long operational life
Case Study
High-Voltage Reed Relay for Insulation Testing in Compact ATE Systems
A leading manufacturer of electrical test equipment needed a compact relay capable of withstanding extremely high voltages to test the insulation characteristics of electrical components. The challenge? Fit a relay with 5 kV AC (7 kV peak) one-minute withstand voltage into a 30 mm-long package, without compromising performance or usability.
Challenge:
- Design a relay that exceeds the electrical specifications of the components being tested.
- Maintain compact size for integration into space-constrained automated test equipment (ATE).
- Ensure no partial discharge during operation, which could compromise test accuracy.
Solution:
Standex Detect engineered a custom reed relay with two reed switches internally connected in series—a configuration not offered by any other supplier.
Outcome:
- Delivered a one-of-a-kind solution that met all performance and size requirements.
- Enabled accurate partial discharge testing in high-voltage environments.
- Simplified integration for the OEM by embedding the series connection inside the relay, avoiding PCB-level creepage issues.
- Reinforced Standex’s reputation for solving unique engineering challenges through close collaboration and technical agility.
